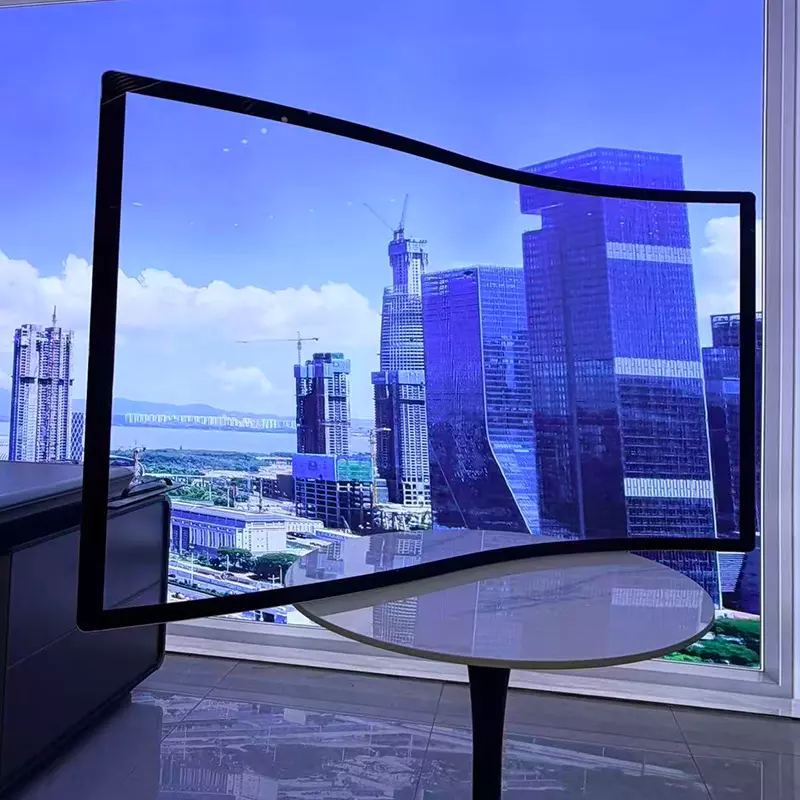

55-inch Mass-Production S-Shaped Cover Glass – Product Description

Product Overview

Zhongji Optoelectronics Technology Co., Ltd. proudly presents its 55-inch S-shaped cover glass – a landmark achievement in large-scale curved glass manufacturing. Leveraging over 20 years of deep-rooted expertise in the glass processing industry, our R&D team has successfully mastered the complex hot-bending techniques required to produce S-shaped cover glass at mass-production scale.

Unlike conventional flat or single-curve glass panels, the S-shaped design features a unique dual-curvature profile that delivers an immersive visual experience, making it an ideal solution for high-end gaming systems, entertainment machines, interactive kiosks, and premium display applications.

Key Features

Complex S-Shape Forming – Through precision-controlled high-temperature heating and advanced mold forming technology, our 55-inch cover glass achieves the intricate S-shaped double-wave curvature-. The dual-radius design (with independently controlled upper and lower curvature profiles) creates a dynamic depth-of-field effect that significantly enhances visual immersion.

High-Strength Tempered Glass – The cover glass undergoes an integrated "hot-bending first, then tempering" production process. After forming the S-shape through precise CNC bending at controlled temperatures (600–750°C), the glass is immediately subjected to rapid air quenching tempering treatment, creating uniform surface compressive stress (≥95MPa) and achieving strength 4–5 times that of ordinary glass. When broken, it shatters into small, obtuse particles, complying with international safety glass standards.

Superior Optical Performance – Manufactured from high-quality glass materials with exceptional light transmittance (≥91.5%)-, the cover glass delivers crystal-clear clarity, accurate color reproduction, and responsive touch performance for modern display systems.

Scratch & Impact Resistance – The advanced material composition provides outstanding surface hardness, protecting display surfaces from scratches caused by daily use and demanding operating environments, while the tempered structure significantly improves resistance to impact and accidental damage.

Customizable Finishing – Supports a range of value-added surface treatments including anti-fingerprint (AF) coating, silk-screen printing, and precision drilling to meet diverse functional and aesthetic requirements.

Technical Specifications

Manufacturing Capability

Located in the scenic city of Zhongshan – the hometown of Dr. Sun Yat-sen – Zhongji Optoelectronics operates a 21,000-square-meter modern facility equipped with intelligent production lines spanning the entire value chain: from precision cutting and hot-bending to coating and beyond-. This vertically integrated setup enables rapid conversion from laboratory samples to mass-production scale, with an annual output capacity exceeding 4 million pieces.

Our 55-inch S-shaped cover glass leverages this advanced manufacturing infrastructure to achieve consistent quality and reliable supply at scale. The company is ISO 9001:2015 certified and holds over 20 R&D process patents, underscoring our commitment to technological innovation as the core of our competitiveness.

Applications

The 55-inch S-shaped cover glass is ideally suited for:

• Gaming & Casino Machines – Immersive curved displays for slot machines, arcade games, and jackpot systems

• Interactive Kiosks – Self-service terminals, banking machines, and public service interfaces

• Premium Commercial Displays – High-end retail signage, exhibition showcases, and digital advertising

• Entertainment Systems – Home theater and professional audio-visual installations

Quality Assurance

Zhongji Optoelectronics is committed to delivering excellence through:

• ISO 9001:2015 certified quality management system

• Over 20 R&D process patents-

• Industry-leading engineers leading our research team

• Rigorous quality control across all 10+ production processes
